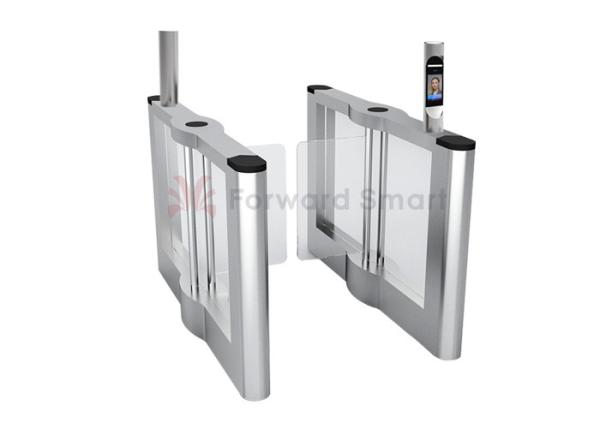

Fingerprint Rfid Card Reader Security half Height Turnstile Gate
Features:
1 with fault detection and alarm function for illegal come.
2..time of reflection test is adjustable after read the card.
3.have read card and memory function.the user can set up access to read cards many times or pass though access one.
4 with automatic reset function, passager read valid card, pass though within the stipulated time, the system will automatically cancel the access permissions for users
5 has a unified, standard external electrical interface ,can be connected many kinds of reading cards.can realize remote control and manage by operating the computer.
Tripod Turnstile Parameters:
| Protection | When the external force exceeds a set value (eg 40 kg) bezel can be rotated in order to protect the chip from loss, followed by automatic reset |
| consist | Chip,housing,control panel and power | Turnstile direction | Single direction/bi-direction |
| configuration | Frame / stainless steel / cold plate spray | Chip drive way | Direct current motor |
| Anti-reverse | With anti-reverse function,guarantee one person one card | temperature | -40°C--60°C |
| power | AC220V±10% 50HZ±4% | Humidity | 5%-95% |
| output | AC24V,DC12V,DC5V | speed | ≥25 persons/minute |
| consumption | Static: single 20W; dynamic: single 60W | noise | ≤50db |
| Work environment | Indoor,outdoor | Passage width | 550-570mm |
| Interface parameter | RS232 singal one pcs,reader 2pcs,fire alarm function one pcs | Examine interface | 2pcs |
| lifespan | Ten years(no consumption) | Protection scale | IP42 |
| demenstion | 1200*280*1040mm |
| Tripod turnstile net weight | 65kg(not include control parts) |
OPERATING MODES.
The turnstile can operate in 3 different modes.
1). Access permanently free, in either or both directions.
2). Access permanently mechanically locked, in either or both directions.
3). Electrically controlled access.
All above operation modes include the arm dropping function providing free and unobstructed safe passage for users in case of power failure.
Mode of operation to be clearly defined at the time of order.
ADVANTAGES AT A GLANCE.
•Low cost.
•Drop arm as standard.
•Robust.
•Reliable.
•LED directional indicator.
•User friendly.
•Compact, small footprint.
•Easy to install.
•Easily integrated with any access control system offering N/O or N/C volt free contact.
•Low power consumption.
DIMENSIONS.
•Length: 420mm.
•Width: 330mm.
•Height: 980mm.
•Arm Length: 600mm.
WORK TO BE PROVIDED BY OTHERS.
•All electrical and control cable requirements.
•All ducts, conducts, containment.
•All foundations, bases.
•Installation.
•Suitable fixings.
