Access control swing turnstile gate with QR code and NFC reader

Name: Access control swing turnstile gate with QR code and NFC reader
Brand: FORWARD SMART
Price: 500 USD

Place of Origin : Guangdong, China

Brand Name : FORWARD SMART

Model Number : TB37

Supply Ability : 1000pieces per month

Packaging Details : Polyfoam/carton box/plywood

MOQ : 1 pieces

Price : USD500-800pieces

Certification : ISO9001:2015

Payment Terms : T/T

Delivery Time : 5-8 working days

Material : 304 Stainless Steel

special function : anti-collision

motor : brushless motor

Passage width : 600mm

Passing speed : 30 persons/min

input voltage : AC220±10%V 50HZ

Working temperature : -10 to 60 centigrade degree

working humidity : 5%~95%

Size : 1400*280*1000mm

Name : turnstile qr code reader

Contact Now

Access control swing turnstile gate with QR code and NFC reader

Product Application

Full-Automatic Tripod Turnstile is suitable for office building,residential area,school,hospital,government building and so on.It is widely uesed for access control,pedestrian management with IC/ID cards,barcode tickets,fingerprint/face recognition etc.It's main special feature is anti-collision, you can even use your foot kick the arm,and the turnstile still can work very well,very good quality.

Main Features

1.Anti-collision,you can even kick the arm.

2.Brushless motor,high quality,longger lifetime

3.RFID card (IC/ID), barcode, fingerprint, face recognition,coins

4.Communication:TCP/IP

5.CPU: ARM

6. 304 Stainless steel

7.noise:≤50dB,operate very quiet.

8.working circumstance :temperature-25~60degree;humidity:5%~95%

9. Full automatic,the arm automatically falls down when power off, rise up when power on.

10. CE and ISO 9001-2008 Certification

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Contains: Mechanism,Housing,Driver board,power supply
2.Remote control by computer.
Working state: single or bi-direction,16modes.
Power: 1.Paused:<30 Watt
2.Working state:<120 Watt
Communication Interface: one RS232 interface
Humidity: 5%-90%
Dimension: 1600x280x1040(mm)
Net Weight: 120KG

Feature & Advantages

1.Cold-rolled steel plate or 304 stainless steel casing optional.
2.Directional LED Optical Signals:Green Arrow or RED Cross signage.
3.Sixteen modes for passing through lanes
4.Mechanism is specially processed ,more durable
5.Always open or close modes,When Fire alarm on,The arcylic will retract automatically.
6.Ensures rapid, efficient & safe access control.
7.Individual installation interface,easy to integrated with Magnetic card,Barcode card,ID card,IC card etc.
8.PhotoElectric Beams installed standard for all models.

Parameters:

Housing material	304# stainless steel, thickness 1.2mm
size	14002801000mm
Wing width	280mm
Passage width	550mm
Work voltage	AC220V±10%,50/60HZ
Control panel and work voltage	DC24V/5A,DC12V/3A
chip	24V/5A,DC12V/3A
Work environment and humidity	indoor and outdoor,- -40°C--70°C,5%-95%,no condensing
Protection scale	IP56
Average no fault times	≥3 million times
Card storage capacity	300-100000 pieces
Pass speed	≥30 persons /minute
Pass indicator	pass when green light, forbid to pass though when red light
Flap turnstile bear weight	80kg
Flap turnstile work drive	3KG
Off wing way	off wing automatically without electricity or be off wing manually
Open wing time	0.2 seconds

Access control swing turnstile gate with QR code and NFC reader

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas

Buy cheap Access control swing turnstile gate with QR code and NFC reader product

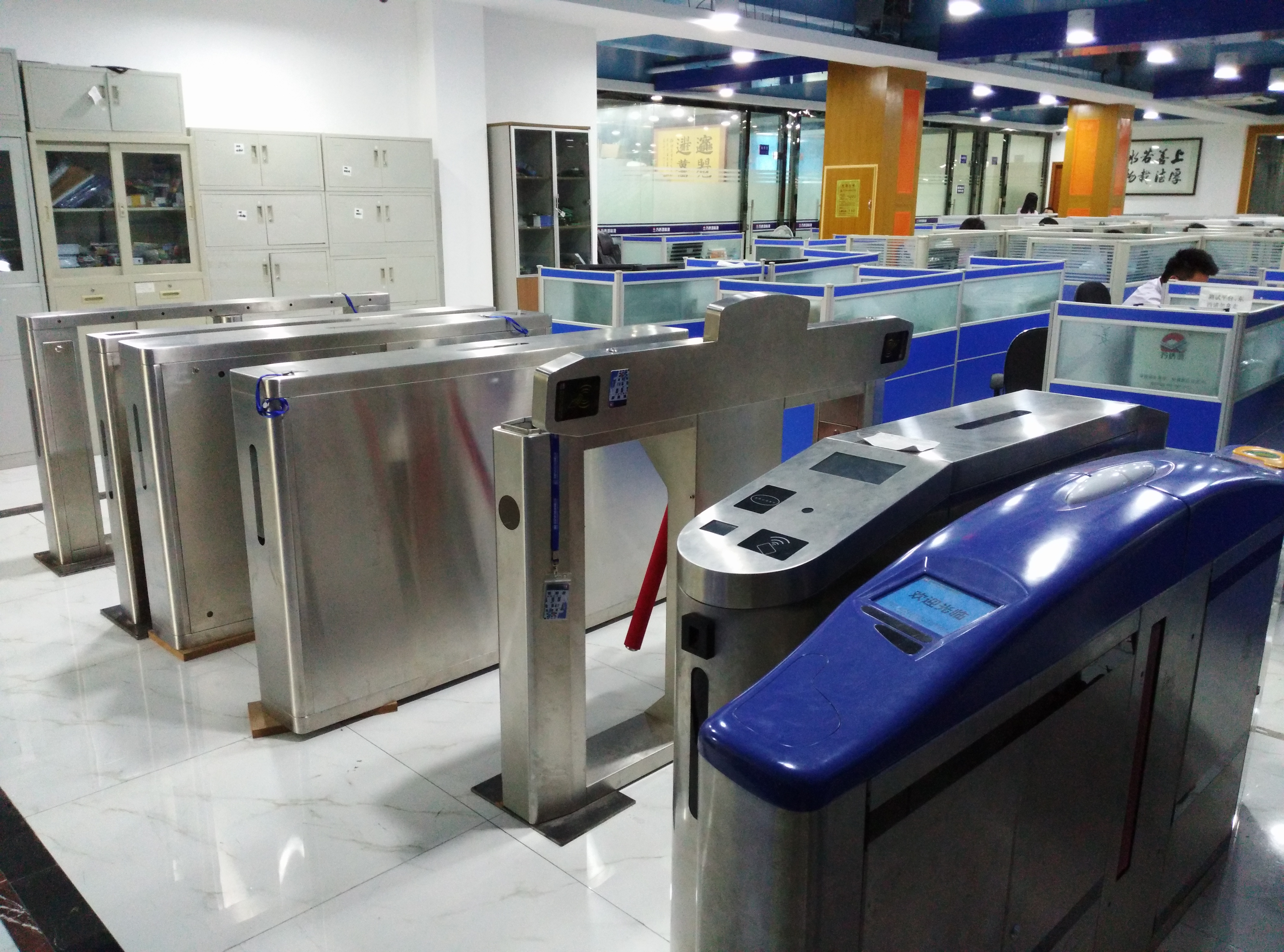

Access control swing turnstile gate with QR code and NFC reader Images
