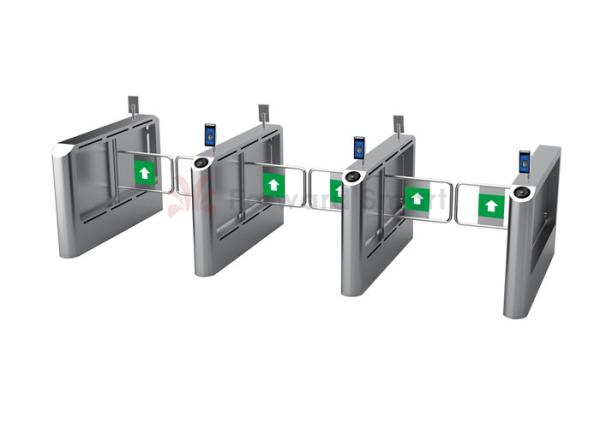

Entrance Exit Tourniquet Turnstile Swing Gate

Shenzhen Forward Smart System Co,.Ltd

Entrance Exit Tourniquet Turnstile Swing Gate

Place of Origin : Guangdong, China

Brand Name : FORWARD SMART

Model Number : TB51

Supply Ability : 1000pieces per month

Packaging Details : 1.Paper carton. 2.Wooden case. 3.OEM packing.

MOQ : 1 pieces

Price : USD500-800pieces

Certification : ISO9001:2015

Payment Terms : T/T

Delivery Time : 5-8 working days

Housing Material : 304 Grade Stainless Steel

Housing Size : 420*330*980MM

Housing thickness : 1.5mm

Control Type : ID/IC/Barcode/Ticket/Fingerprint Control Accepted

Communication Interface : RS485/TCP/IP

Passing Speed : 30-40 persons/min

Passage width : ≤600MM

Direction : Single or Bi-direction

Warranty : 1 Year

Port : SHENZHEN/HK

Contact Now

Tourniquet turnstile gate entrance and exit access management system
Product Description

Features of Turnstile Gate:

>>Stainless steel box, box-type bevel shape, novel and beautiful, durable.

>>Waterproof, sunscreen, anti-temperature, anti-cold.

>>Access Prompt function:Red and green light prompt the passing information.

>>The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control

>> Compatible IC, ID, magnetic card, bar code card, and other control equipment.

>>Power failure emergency function after power channel automatically open, closed automatically after
power-on, to meet the special needs of the user and the fire safety requirements

>>The control panel with counting function, LED digital display function (optional)

>> Fault detection and alarm function, user-friendly maintenance and use

Technical Parameters:

Name
Tripod Turnstile
Model
WQH-TS06
Housing Size
420x330x980mm
Housing Material
304 grade stainless steel optional
Passing speed
over 30 person/min
Working voltage
AC220V±10V, 50HZ
Motor voltage
220V
Rated Power
80w
Transmission
Sine Linkage
Frenquency
50-60Hz
Net Weight
60kg
Gross Weight
65kg
Control type
IC/ID/Barcode control accepted
Boom length
≤600mm
Logic voltage
24v
Direction
Single or Bi-directional
Working temperature
-45°C--+80°C
Operating humidity
≤90% non-condensing
Communication Interface
RS485/RS232
Operation life
≥5 million times
Packing & Delivery

*Package for tripod turnstile : Honycomb Board Box or Plywood Board

*Shipping for tripod turnstile By air: DHL,Fedex,UPS,TNT,EMS or by sea

Delivery:5-15 working days

Company Profile



Our main comprehensive product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system and some traffic accessories.

Most of products from WQH has acquired CE certificate. and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Euorpe, Africa, South America.

In order to provide our customer better service, we have established agent sites in Sri Lanka and Thailand.More distributors are need to expand our marketing share and gain win-win outcome.

Welcome to join our distribution network and become our agents in your local
